Control valves and sensor paddles

Detect position of felt or fabric edge and control the guide.

The edge tracking unit, consisting of a sensor paddle and a control valve, accurately detects the position of the felt/wire edge and precisely controls the guide. This guarantees that the fabric runs as it should. Sensor paddles and control valves are available in different designs and sizes suited to specific uses.

  • High operating safety.
  • For all purposes.
  • Temperature-resistant.

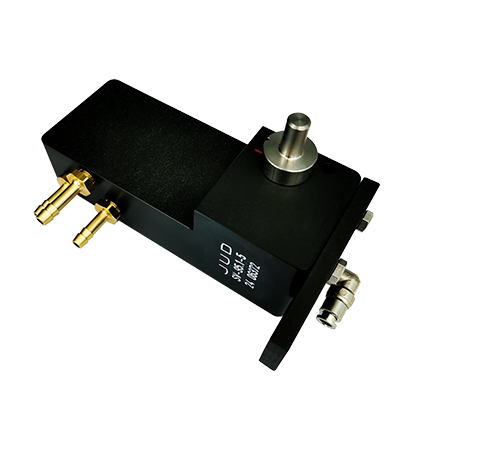

Control valve SV-95.1-5

  • Air throughput ø 5mm.
  • Indirect (cam type) pneumatic valve.
  • Simple, reliable design.
  • 16° zero position.
  • Sensor paddle gravity-loaded.
  • Immediate response for most demanding applications.
  • Anodised aluminium or stainless steel.
  • Maximum air pressure 6 bar.
  • In zero position almost no air consumption.
Request quote

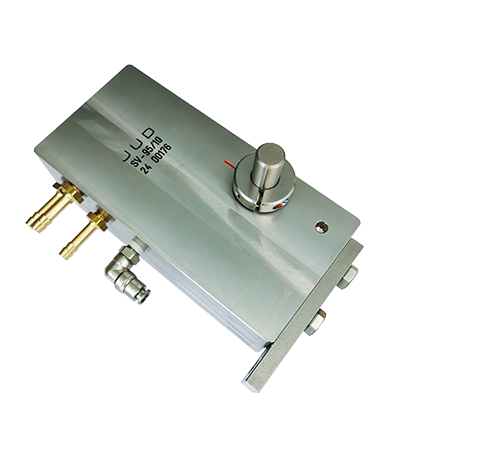

Control valve JUD SV-95-10

  • Air throughput ø 10mm.
  • Indirect (cam type) pneumatic valve.
  • Simple, reliable design.
  • 16° zero position.
  • Sensor paddle gravity-loaded.
  • Immediate response for most demanding applications.
  • Anodised aluminium or stainless steel.
  • Maximum air pressure 6 bar.
  • In zero position almost no air consumption.
Request quote

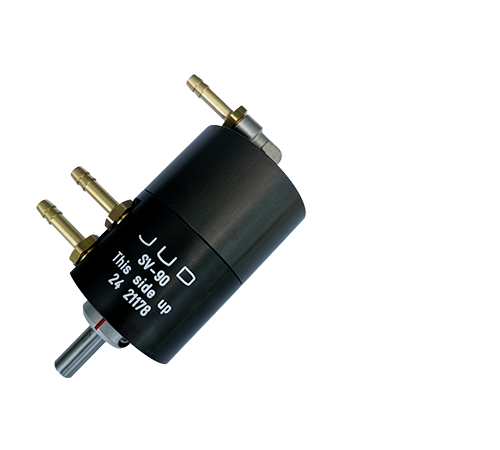

Control valve JUD SV-90

  • Direct rotary pneumatic valve.
  • Simple, reliable design.
  • 16° zero position.
  • Sensor paddle gravity-loaded.
  • Hysteresis to compensate uneven edges.
  • Anodised aluminium or stainless steel.
  • Maximum air pressure 4 bar.
  • In zero position almost no air consumption.
Request quote
